China Top SMD Electronic Component Carrier Tape Supplier?

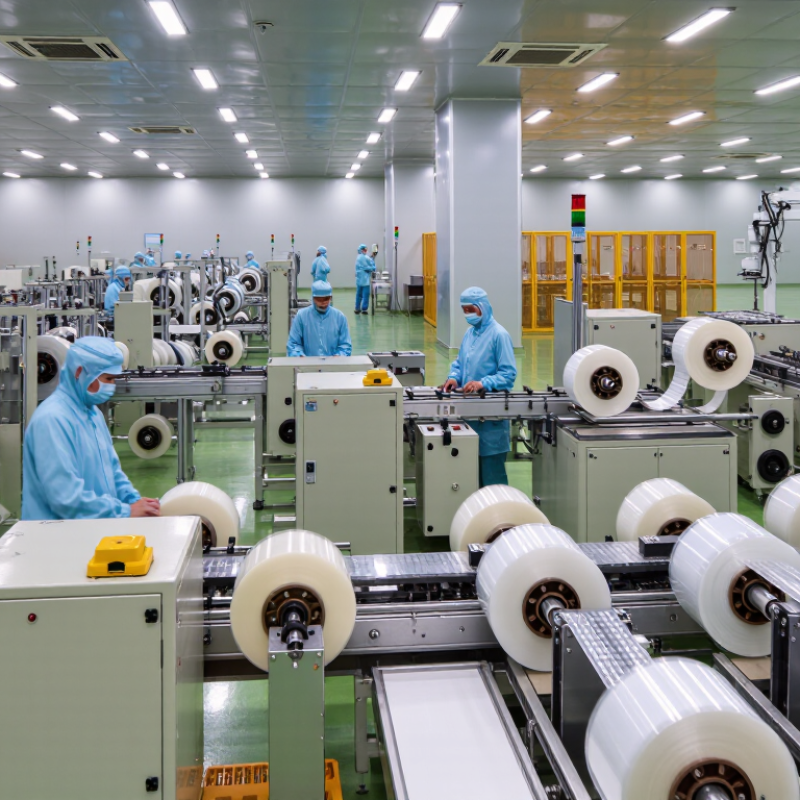

China has become a major manufacturing base for semiconductor packaging materials, including Smd Electronic Component Carrier Tape. Its advantages are visible on factory floors: automated slitting machines, clean winding stations, and reels stacked beside high-speed placement lines. Yet low prices alone do not prove supplier reliability.

The World Semiconductor Trade Statistics forecast global semiconductor sales at approximately $588 billion in 2024, showing stronger demand for packaged components. SEMI’s World Fab Forecast also reports continued investment in semiconductor fabrication capacity. Meanwhile, Yole Group’s advanced packaging research highlights growing pressure on materials, handling accuracy, and supply-chain resilience. These trends directly influence carrier tape specifications, including pocket dimensions, surface resistance, tensile strength, and cover-tape sealing performance.

Jan Vardaman, president of TechSearch International, has often emphasized: “Packaging is becoming a system-level issue, not merely an assembly step.” That observation applies to Smd Electronic Component Carrier Tape. A small dimensional error can create component rotation, pocket deformation, or feeder jams during placement. The defect may appear minor, but production losses can become expensive quickly.

This guide examines China’s leading supplier landscape through technical capability, quality systems, export experience, customization, and delivery consistency. Supplier rankings should remain cautious. Public data can be incomplete, and factory claims are not always independently verified. A promising supplier still needs sample testing, dimensional inspection, and real feeder trials. The best choice is rarely the cheapest reel. It is the supplier that keeps every pocket stable, every splice clean, and every delivery predictable.

Table of Contents [Hide]

1 What Is SMD Electronic Component Carrier Tape?

2 How Does Carrier Tape Support SMD Component Packaging?

3 What Makes a Top China Carrier Tape Supplier?

4 How to Evaluate Carrier Tape Quality and Compatibility?

5 Why Choose a Chinese Carrier Tape Manufacturer?

What Is SMD Electronic Component Carrier Tape?

SMD electronic component carrier tape is a precision packaging strip for surface-mount devices. It holds each component in a separate pocket during transport, inspection, and automated assembly. The tape usually includes a formed base, a cover layer, and sprocket holes for machine feeding. Pocket dimensions must match the component body closely.

In production work, I have seen small dimensional errors create large feeding problems. A pocket that is too shallow may damage a component. A pocket that is too wide can allow rotation. The sprocket pitch also needs consistent control. Otherwise, the placement machine may lose alignment. Good carrier tape should protect parts from dust, vibration, static electricity, and pressure. Material selection depends on component size, weight, moisture sensitivity, and storage conditions.

A dependable supplier checks pocket depth, pitch, tensile strength, and cover-peel performance. Sample testing is useful before mass production. It can reveal weak sealing or poor winding quality. I have learned that transparent tape is not always better; visibility must support inspection without reducing protection. No design is perfect. Some projects still need adjustment after machine trials, especially when components have unusual shapes or fragile terminals. Clear drawings and recorded inspection data make these changes easier to control.

How Does Carrier Tape Support SMD Component Packaging?

How Does Carrier Tape Support SMD Component Packaging?

Carrier tape protects SMD components during storage, transport, and automated placement. Its molded pockets hold each device in a fixed orientation. Sprocket holes then guide the tape through high-speed feeders. Cover tape adds protection against dust and accidental movement. Fit matters.

The WSTS Spring 2024 market forecast projected global semiconductor sales of about 611 billion US dollars in 2024, a 16% annual increase. This growth places more pressure on stable packaging operations. According to EIA-481 requirements, pocket dimensions, pitch, and indexing must match feeder specifications. Even a small dimensional error can cause missed picks, component rotation, or line stoppage. Small errors multiply.

In practical production, buyers should inspect pocket depth, cover-tape peel force, antistatic performance, and reel winding tension. Moisture-sensitive components may also need compatible packaging materials and controlled storage. IEC 61340-5-1 guidance supports electrostatic-control practices, but tape alone cannot replace a complete ESD program. That is often overlooked. A reliable supplier should provide dimensional inspection records, material traceability, and sampling data for every production batch. However, no carrier tape is perfect; recycled resin variation, tooling wear, and humidity can still affect consistency. Regular feeder trials remain necessary, especially when changing tape width or component geometry.

China Top SMD Electronic Component Carrier Tape Supplier? - How Does Carrier Tape Support SMD Component Packaging?

Data Dimension	Typical Industry Data	How It Supports SMD Packaging	Key Verification Point
Applicable component type	Surface-mount resistors, capacitors, inductors, diodes, LEDs, ICs, connectors and other tape-and-reel components	Protects small components during transport and presents them in a consistent orientation for automated pick-and-place assembly	Confirm component outline, height, terminal position and required pocket orientation
Common tape widths	8, 12, 16, 24, 32, 44, 56 and 72 mm are widely used; wider formats are also available for larger devices	Provides enough support around the pocket while maintaining compatibility with feeder equipment	Match the tape width with the feeder specification and the component pocket layout
Typical indexing pitch	Common pocket pitches include 2, 4, 8, 12, 16 and 24 mm; the correct pitch depends on the component and feeder	Allows the feeder to advance one pocket at a time and synchronizes component presentation with the placement head	Check pocket pitch against the feeder indexing pitch and the assembly machine program
Sprocket-hole pitch	Standard carrier-tape sprocket-hole spacing is generally 4 mm between adjacent holes	Enables positive, repeatable tape feeding and reduces slippage during high-speed placement	Verify hole diameter, hole position and edge distance according to the applicable tape standard
Pocket dimensions	Pocket length, width and depth are customized to the component body; clearance is normally added to prevent jamming while limiting movement	Holds each component securely, controls orientation and reduces damage caused by impact or excessive movement	Use the component drawing and tolerance data rather than nominal body size alone
Pocket depth	Common pocket depths range from approximately 0.5 mm for small passive parts to several millimeters for larger ICs and connectors	Accommodates component height and helps prevent components from escaping or rotating inside the pocket	Allow for component height tolerance, lead protrusion and cover-tape clearance
Carrier-tape materials	Embossed tape commonly uses PET, PS, PC, PVC or other engineered polymer films; paper tape is also used for selected small passive components	Material selection balances dimensional stability, pocket forming performance, static control, stiffness and recyclability	Confirm antistatic or dissipative performance when handling electrostatic-sensitive devices
Cover tape function	Transparent or translucent cover tape is heat-sealed or pressure-sealed to the carrier tape, depending on the packaging design	Prevents components from falling out while allowing the pick-and-place nozzle to peel and access them at the feeder	Check peel force, seal strength, residue, transparency and compatibility with the feeder peeler mechanism
Orientation control	Pockets may include chamfers, cavities, ribs or asymmetrical features to define component orientation	Reduces incorrect polarity, upside-down placement and rework for polarized or orientation-sensitive components	Confirm polarity marking, pin-1 direction and the required tape winding direction
Static-control requirement	Electrostatic-dissipative or antistatic materials are commonly specified for electrostatic-sensitive components	Helps reduce electrostatic discharge risk during loading, transportation, storage and automated assembly	Request surface-resistance data and packaging verification under the required ESD control program
Dimensional standard	EIA-481 is widely referenced for the dimensional and feeding requirements of carrier tape and reel packaging	Promotes interchangeability between the packaged tape and compatible automatic placement feeders	Use the latest customer drawing and machine requirements where they are more specific than the general standard
Reel and winding configuration	Tape is supplied on reels with defined inner diameter, outer diameter, hub width, winding direction and leader length	Ensures the reel fits the feeder and that the tape unwinds smoothly without telescoping or excessive tension	Confirm reel dimensions, maximum reel weight, component quantity and leader or trailer requirements
Quality-control checks	Typical checks include tape width, pitch, pocket dimensions, hole position, cover-tape peel force, visual defects and component count	Improves feeding consistency and reduces line stoppages, mispicks, component damage and placement defects	Request inspection records, sampling plans and production samples before approving mass production
Supplier evaluation criteria	Engineering capability, tooling accuracy, material traceability, inspection controls, sample validation, delivery stability and technical support	A capable supplier can convert component drawings into stable tape tooling and maintain consistent performance across production batches	Compare verified samples and technical documents rather than evaluating supplier claims alone

Note: The values shown are common industry ranges and practices. Final carrier-tape dimensions, materials, sealing parameters and reel specifications should be validated against the component drawing, feeder model and applicable packaging standard.

What Makes a Top China Carrier Tape Supplier?

China Top SMD Electronic Component Carrier Tape Supplier?

A top China carrier tape supplier delivers more than molded plastic strips. It controls pocket dimensions, material consistency, and production records. During assembly, a pocket only slightly too shallow can tilt a tiny component. That small error may interrupt high-speed placement. Reliable suppliers measure pocket depth, pitch, width, and tensile strength throughout production. They also check sprocket holes with calibrated equipment. Accuracy matters.

Material selection reveals technical experience. Different components may require PS, PC, or antistatic materials. A suitable tape should protect parts from movement, static charge, dust, and moisture exposure. Good suppliers test compatibility with cover tape and feeder systems. They provide samples before mass production. Clear drawings and inspection reports reduce misunderstandings between engineers and operators.

Real manufacturing is not perfect. A supplier may pass dimensional checks yet overlook an edge burr. That issue can appear only after long feeder operation. Strong quality teams investigate such feedback instead of blaming the customer. They adjust molds, review process data, and retain traceable batch records. Communication should be direct and technically specific. Delivery capability also matters, especially when custom tooling or repeated orders are involved. The best supplier is not simply the cheapest option. It is the one that can explain its process, prove its control points, and improve when testing exposes a weakness.

What Makes a Top China SMD Carrier Tape Supplier?

Common nominal carrier-tape widths used for SMD component packaging

Carrier tape width is selected according to the component package and feeder system. Common nominal widths include 8, 12, 16, 24, 32, 44, 56, 72, and 88 mm, as specified in widely used EIA-481 packaging practices. A top supplier should support the required width range while maintaining accurate pocket dimensions, stable material quality, reliable sprocket-hole alignment, clean sealing, and consistent delivery performance.

How to Evaluate Carrier Tape Quality and Compatibility?

Carrier tape quality directly affects component placement, transport, and sealing performance. From factory inspections, reliable evaluation starts with dimensional control. Check pocket length, width, depth, pitch, and sprocket-hole position against the component drawing. Even a small pitch error can disturb feeder indexing.

Measure it.

Inspect several samples from different rolls, not only one attractive section. The pocket should hold each component without tilting, crushing, or excessive movement. Test the material under normal production temperatures and humidity. Conductive or static-dissipative performance also matters when handling sensitive electronic parts. A surface may look clean but still create electrostatic risks.

Compatibility includes more than pocket size. Verify cover-tape adhesion, peel force, sealing width, and machine compatibility. The tape should open smoothly without lifting components or leaving adhesive residue. Confirm reel dimensions, winding direction, and splice quality before shipment. Trial loading on the actual feeder is more reliable than checking a data sheet alone. A qualified supplier should provide inspection records, material details, and traceable batch information.

Some evaluations miss long-term storage. That is a mistake. Run aging or humidity checks when components may remain packed for weeks. I have seen tapes pass visual inspection yet deform near warm equipment. This is why practical testing should support, not replace, documented specifications. No test is perfect, but repeated measurements reveal weak points early.

Why Choose a Chinese Carrier Tape Manufacturer?

China has become a practical sourcing base for SMD carrier tape. The Semiconductor Industry Association reported global chip sales of 627.6 billion dollars in 2024, a 19.1% annual increase. Rising output creates steady demand for reliable packaging materials. Chinese manufacturers often sit near film, molding, tooling, and electronics supply networks. This proximity can shorten sampling cycles and reduce coordination costs.

Quality still requires proof. Experienced factories should control tape width, pocket dimensions, sprocket-hole accuracy, antistatic performance, and winding tension. Their inspection records should follow applicable EIA-481 requirements and customer drawings. In production audits, I would request material certificates, dimensional reports, retention-force tests, and sample reels before approving volume orders. A low quotation may hide unstable tooling or inconsistent raw materials. That risk is easy to underestimate.

Tips: Ask for a pilot batch first. Check pocket fit with your actual components. Confirm cleanroom or dust-control practices where necessary.

Review packaging during transit, not only inside the factory. Small details matter. Also, compare total landed cost, including tooling, freight, rejected reels, and lead time. Chinese suppliers can offer strong flexibility, but supplier selection should depend on documented process control, traceability, and responsive engineering support—not price alone.
