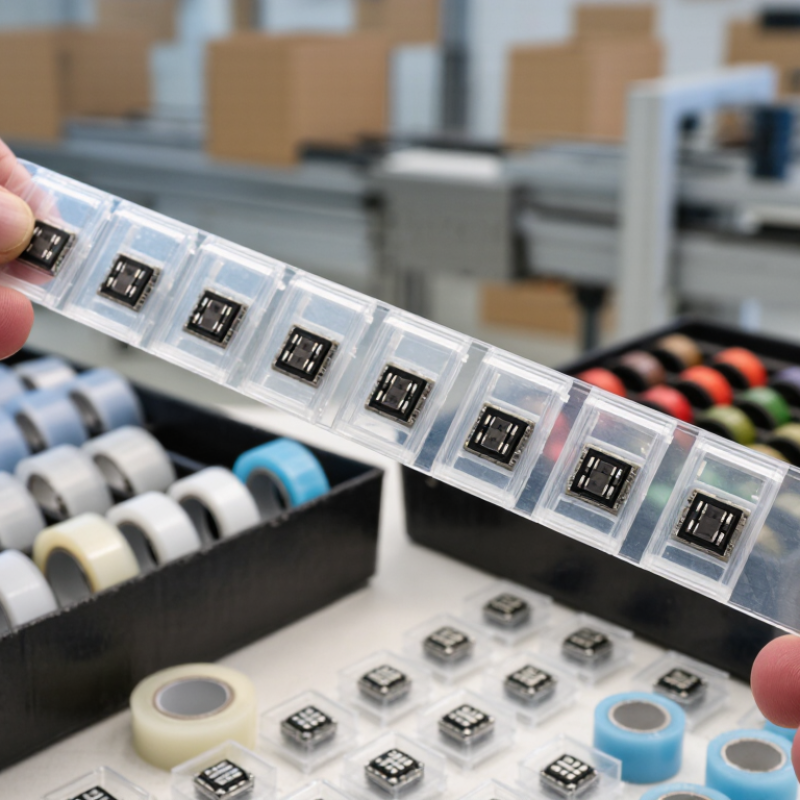

7 Tips for Choosing the Right Transformer Carrier Tape

Choosing the right Transformer Carrier Tape is a practical engineering decision, not a simple purchasing task. The tape must protect transformer components while supporting accurate, stable automation. A pocket that looks suitable may still create vibration, scuffing, poor indexing, or difficult release during high-speed assembly.

John H. Lau, a recognized semiconductor packaging authority, offers a principle that applies strongly here: “Packaging performance depends on the interaction between materials, dimensions, and process conditions.” That interaction deserves careful attention. Tape material, pocket geometry, cover-tape compatibility, pitch accuracy, surface resistance, and storage conditions can influence the entire production line. Small errors matter.

The best selection begins with the transformer itself. Measure its length, width, height, lead position, and vulnerable surfaces. Then examine the feeder, sealing temperature, winding method, and expected transport distance. A tape that performs well in a laboratory may behave differently after vibration, humidity, or repeated handling. Real trials are essential.

Not every specification is equally useful. Some suppliers provide impressive numbers without explaining test conditions. That should raise questions. Ask for samples, dimensional tolerances, material data, and documented quality controls. Check whether the pocket holds the component firmly without excessive pressure. Confirm that the cover tape peels cleanly and leaves no residue.

The choice is rarely perfect on the first trial. That is the uncomfortable part. These seven tips will help you compare Transformer Carrier Tape options with greater confidence, reduce avoidable production problems, and build a more reliable packaging process.

Table of Contents [Hide]

1 Define the Transformer Carrier Tape’s Packaging Requirements

2 Match Pocket Dimensions to Transformer Size and Shape

3 Evaluate Tape Materials, Strength, and Thermal Resistance

4 Check Sealing Performance and Equipment Compatibility

5 Verify Supplier Quality, Compliance, and Overall Cost

Define the Transformer Carrier Tape’s Packaging Requirements

7 Tips for Choosing the Right Transformer Carrier Tape

Define the Transformer Carrier Tape’s Packaging Requirements

Packaging requirements should begin with the transformer’s actual geometry. Measure body length, width, height, pin spacing, and lead direction. Small errors can cause feeder jams or tilted components. Include the maximum component tolerance, not only the nominal size. Leave enough pocket clearance for safe loading, but avoid excessive movement.

Select a pocket shape that supports the transformer during transport. Soft contact points may reduce scratches on coated surfaces. Confirm the tape pitch, sprocket-hole size, reel width, and winding direction with the assembly line. Cover tape strength also matters. It must hold components firmly, then release them cleanly during placement. Test peel force under normal room conditions. Humidity can change the result.

Protection needs a clear definition. Specify ESD control when the component or production area requires it. Consider dust barriers, moisture protection, and cushioning for long-distance shipping. Use labels that show part code, quantity, lot traceability, and packing date. A trial run is essential. I have seen good-looking samples fail on high-speed feeders. The specification was correct, but the pocket depth was not. Recheck the loaded tape, not just the drawing. Allow room for improvement. The first design may still be imperfect.

Match Pocket Dimensions to Transformer Size and Shape

7 Tips for Choosing the Right Transformer Carrier Tape

Match pocket dimensions to the transformer’s actual size and shape, not only its catalog drawing. A 2024 power electronics market report projects growth from approximately USD 34 billion in 2024 to USD 46 billion by 2029. This expansion brings more custom transformer geometries to production lines. Measure length, width, height, lead position, and corner radius. Leave enough clearance for insertion, but avoid excessive movement.

A practical starting point is 0.3 to 0.8 mm of lateral clearance for stable loading, depending on component size and machine speed.

Tall transformers need deeper pockets and stronger sealing support. Check the component’s center of gravity, too. An uneven body can tilt during indexing. That small error may damage pins or interrupt vision inspection. For heat-sensitive materials, confirm the tape’s temperature resistance against the assembly process. IPC packaging guidance also emphasizes dimensional control and protection from mechanical stress.

Do not trust one sample alone. Measure at least 30 components from different production batches when possible. Compare the maximum dimensions, not just the average. I have seen pockets fit perfectly during a trial, then bind when tolerances shifted. That mistake is easy to miss. Review pocket depth, pitch, cover-tape adhesion, and peel force together. A 2023 electronics manufacturing quality study reported that packaging-related handling issues can create measurable yield losses, although exact rates vary by process. Test filled reels through loading, transport, and automatic feeding before approving the design.

Evaluate Tape Materials, Strength, and Thermal Resistance

7 Tips for Choosing the Right Transformer Carrier Tape

Evaluate Tape Materials, Strength, and Thermal Resistance

Choosing transformer carrier tape starts with the material, not the lowest quotation. Common options include polystyrene, polycarbonate, and antistatic engineered polymers. Each behaves differently during forming, transport, and heat exposure. Check the material’s moisture sensitivity and dimensional stability. A tape that warps slightly can shift transformer bodies inside the pocket. That creates feeding errors.

Strength matters during winding, sealing, and automated placement. Review tensile strength, pocket compression resistance, and edge stiffness. Pull tests are useful, but they do not tell the whole story. A tape may resist stretching yet crack around a deep pocket. Inspect the corners after forming. Small white stress marks deserve attention.

Thermal resistance should match every process stage. Consider preheating, sealing, storage, and any reflow-related exposure. Ask for test data at the actual temperature and dwell time. A material rated for brief heat contact may fail during repeated cycles. I once treated a temperature rating as a complete guarantee. That was too simple. Humidity, pocket depth, and loading weight also change performance. Run a short production trial with real transformers. Watch for warped covers, loose seals, and damaged component leads. Supplier documentation is important, but measured results from your line are more reliable.

7 Tips for Choosing the Right Transformer Carrier Tape

Evaluate Tape Materials, Strength, and Thermal Resistance

How to read this chart: Polycarbonate provides the highest representative continuous-use temperature and strong tensile performance, making it suitable for demanding thermal processes. PET offers a balanced combination of strength and heat resistance, while polystyrene is generally selected for lower-temperature applications where cost and easy forming are priorities.

The values are representative midpoints of commonly published engineering ranges. Actual performance depends on resin grade, tape thickness, pocket geometry, forming method, humidity, and processing temperature. When selecting carrier tape, also verify dimensional stability, antistatic requirements, sealing compatibility, surface protection, and compliance with the applicable packaging standard.

Check Sealing Performance and Equipment Compatibility

7 Tips for Choosing the Right Transformer Carrier Tape

Check Sealing Performance and Equipment Compatibility

Transformer components need stable protection during storage, transport, and automated assembly. A weak seal can expose parts to dust, moisture, or movement. The WSTS Spring 2024 Forecast projected global semiconductor sales at 611.2 billion dollars in 2024. Rising production volume makes packaging consistency less negotiable. I have seen clean-looking reels fail because the cover tape opened unevenly.

Tip 1: Test peel strength across the full sealing window. Measure sealing force at different temperatures, pressures, and speeds. Do not trust one laboratory setting. EIA-481 and IEC 60286-3 provide useful packaging and feeding references. Check peel behavior after aging, vibration, and temperature changes. A strong seal is not always a good seal.

Tip 2: Match the tape to the equipment. Confirm pocket pitch, sprocket-hole accuracy, tape width, and cover-tape dimensions. The feeder should advance smoothly without dragging or skewing. Test the actual transformer body, not only an empty carrier. Small geometry differences can cause jams. This step is often rushed.

Tip 3: Review material compatibility with heat, static control, and adhesive residue limits. JEDEC JESD625 highlights the importance of electrostatic-control practices for sensitive electronic handling. Ask for inspection records, peel-strength data, and dimensional tolerances. A supplier’s report is useful, but production trials reveal more. Leave room for that uncomfortable finding.

7 Tips for Choosing the Right Transformer Carrier Tape - Check Sealing Performance and Equipment Compatibility

No.	Selection Tip	Key Dimension to Check	Practical Acceptance Guidance	Recommended Verification	Why It Matters
1	Confirm pocket geometry	Pocket length, width, depth, corner radius, and component clearance	The transformer should sit flat without forced insertion, excessive movement, lead contact, or interference with the cover tape.	Measure samples with calibrated gauges or optical equipment; verify the largest and smallest component dimensions.	Correct geometry reduces component damage, rotation, bridging, and feeding problems.
2	Check sealing performance	Seal strength, peel consistency, sealing temperature, dwell time, and pressure	Use a peel force that keeps the tape closed during transport but allows smooth automated opening without tearing or sudden release. Final limits should be validated with the actual tape and machine.	Run peel testing at a controlled angle and speed after sealing; inspect for channel leaks, wrinkles, incomplete bonds, and adhesive transfer.	Stable sealing protects parts from dust and movement while preventing feeder jams and component ejection.
3	Verify equipment compatibility	Tape width, pitch, sprocket-hole position, pocket pitch, reel dimensions, and cover-tape opening direction	The tape should track smoothly through the feeder, maintain sprocket engagement, and match the equipment’s supported tape and reel specifications.	Test a complete reel on the intended feeder at normal operating speed and check indexing accuracy across the full reel.	Dimensional mismatch can cause skewing, missed indexing, peeling faults, or unplanned line stoppages.
4	Select suitable material and rigidity	Base material, thickness, flexural rigidity, heat resistance, and resistance to cracking	Choose a material that remains stable during sealing, storage, transport, and feeder movement; avoid excessive flexibility for deep or heavy transformer pockets.	Inspect formed pockets before and after thermal exposure and bending; check for whitening, deformation, cracks, and loss of pitch accuracy.	Adequate rigidity preserves pocket shape and prevents component displacement during handling.
5	Control electrostatic performance	Surface resistance, charge generation, grounding path, and packaging environment	For ESD-sensitive assemblies, specify a packaging system with documented static-control performance and verify it under the facility’s humidity and handling conditions.	Use a calibrated resistance meter and charge-monitoring method; test tape, cover tape, and loaded pockets rather than the base film alone.	Uncontrolled static electricity may attract dust or damage sensitive electronic components.
6	Evaluate storage and environmental stability	Temperature, relative humidity, shelf life, light exposure, and contamination control	Store sealed reels in a clean, dry area and follow the supplier’s storage limits; avoid condensation and prolonged exposure to heat or direct sunlight.	Conduct accelerated or real-time aging checks and repeat sealing, peel, dimensional, and visual inspections after storage.	Environmental changes can alter seal strength, film dimensions, adhesive behavior, and pocket shape.
7	Review quality consistency and traceability	Lot-to-lot variation, dimensional inspection, reel length, splice control, and identification records	Require documented inspection results for critical dimensions and sealing properties, with clear lot identification and controlled splice locations.	Inspect incoming samples using a defined sampling plan; record pocket dimensions, pitch, seal results, reel condition, and nonconformities.	Traceability supports rapid root-cause analysis and reduces repeat defects in automated packaging lines.

Validation note: Seal-force limits, dimensional tolerances, material selection, and storage conditions should be finalized through trials using the actual transformer, cover tape, carrier tape, and feeder combination.

Verify Supplier Quality, Compliance, and Overall Cost

7 Tips for Choosing the Right Transformer Carrier Tape

Verify Supplier Quality, Compliance, and Overall Cost

Tip 1: Inspect the supplier’s quality system before discussing price.

Ask for recent inspection records, material specifications, and dimensional tolerances. Reliable suppliers should explain how they control pocket depth, pitch, cover-tape adhesion, and ESD performance. Request samples from regular production, not specially prepared pieces. A clean sample proves little by itself. In practice, small variations can affect automatic placement and transformer protection.

Tip 2: Check compliance documents carefully.

Confirm material declarations, RoHS and REACH-related statements, and any required flammability or environmental records. Documents should identify the exact tape material and revision date. Generic certificates create uncertainty. They may not match your selected product. I have seen purchasing teams accept old files, then discover a material change during an audit.

Tip 3: Calculate the complete cost, not only the unit price.

Include tooling, minimum order quantities, freight, storage, setup waste, and rejected parts. Compare how each supplier handles design changes and replacement claims. A cheaper tape may cause loose components, feeding interruptions, or damaged leads. Those delays quickly outweigh a small price difference. Test the tape on your actual feeder, at production speed, with filled pockets. The result may challenge your first choice.
